70 Series Ultrasonic Lace Sewing Machine

The 70 Series ultrasonic lace sewing machine is a versatile ultrasonic fabric welding and edge sealing machine for nonwoven fabric, synthetic textiles, artificial leather, spray-bonded cotton, film and plastic sheet. Also known as an ultrasonic lace machine, ultrasonic sewing machine, ultrasonic quilting machine, seamless sewing machine or ultrasonic embossing machine, it performs trimming, seamless joining, perforating, slitting, cutting, sealing and decorative embossing without conventional thread.

The series is available in six quoted configurations: manual single-motor, pneumatic single-motor, manual dual-motor, pneumatic dual-motor, raised-head, and radial reinforced. Pattern rollers can be customized for the required lace profile and product application.

Applications

• Lace garments, bra and underwear components, webbing and decorative trims
• Handkerchiefs, tablecloths, curtains and tents
• Raincoats, surgical gowns, face masks and medical protective products
• Nonwoven, synthetic fabric, artificial leather, spray-bonded cotton, film and plastic sheet

Core Advantages

• New-generation 20 kHz computer-controlled intelligent ultrasonic generator and transducer
• Integrated microprocessor and multi-channel ultrasonic protection system for stable operation
• High, medium and low power adjustment for different materials and fabric thicknesses
• Automatic frequency tracking and soft-start technology
• Manual mold lifting as standard; pneumatic mold lifting available by configuration
• Dual-motor speed-control system on applicable models
• Customizable pattern roller for lace, perforation and embossing designs
• Processing speed stated as four times that of a traditional sewing machine

Available Configurations

1. 70 Manual Single-Motor Ultrasonic Lace Machine – 1 set

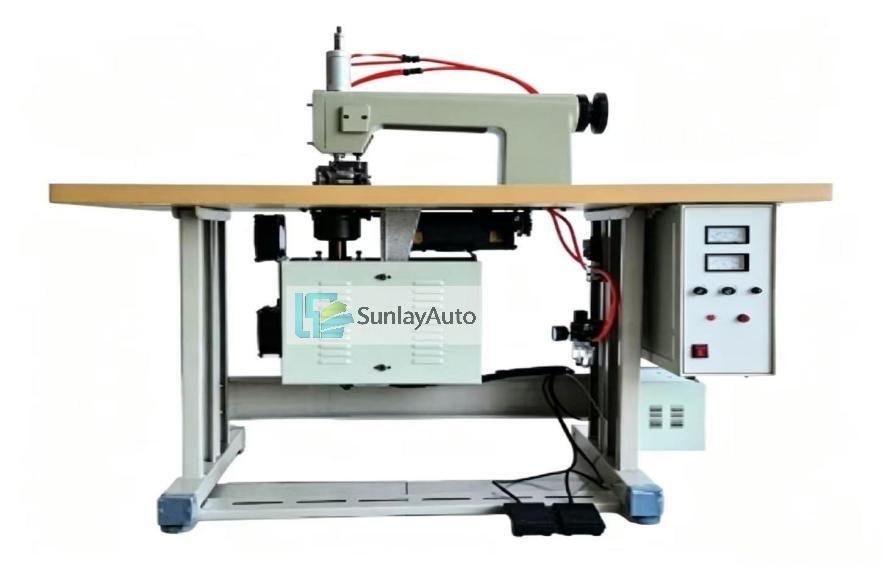

2. 70 Pneumatic Single-Motor Ultrasonic Lace Machine – 1 set

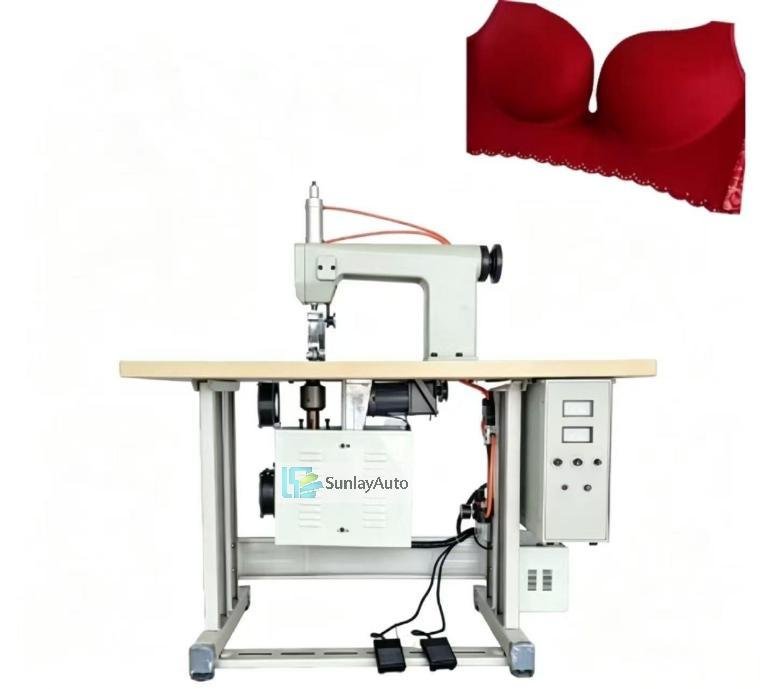

3. 70 Manual Dual-Motor Ultrasonic Lace Machine – 1 set
4. 70 Pneumatic Dual-Motor Ultrasonic Lace Machine – 1 set
5. 70 Raised-Head Ultrasonic Lace Machine – 1 set
6. 70 Radial Reinforced Ultrasonic Lace Machine – 1 set

Standard 70 Series Technical Specifications

Standard Machine Configuration

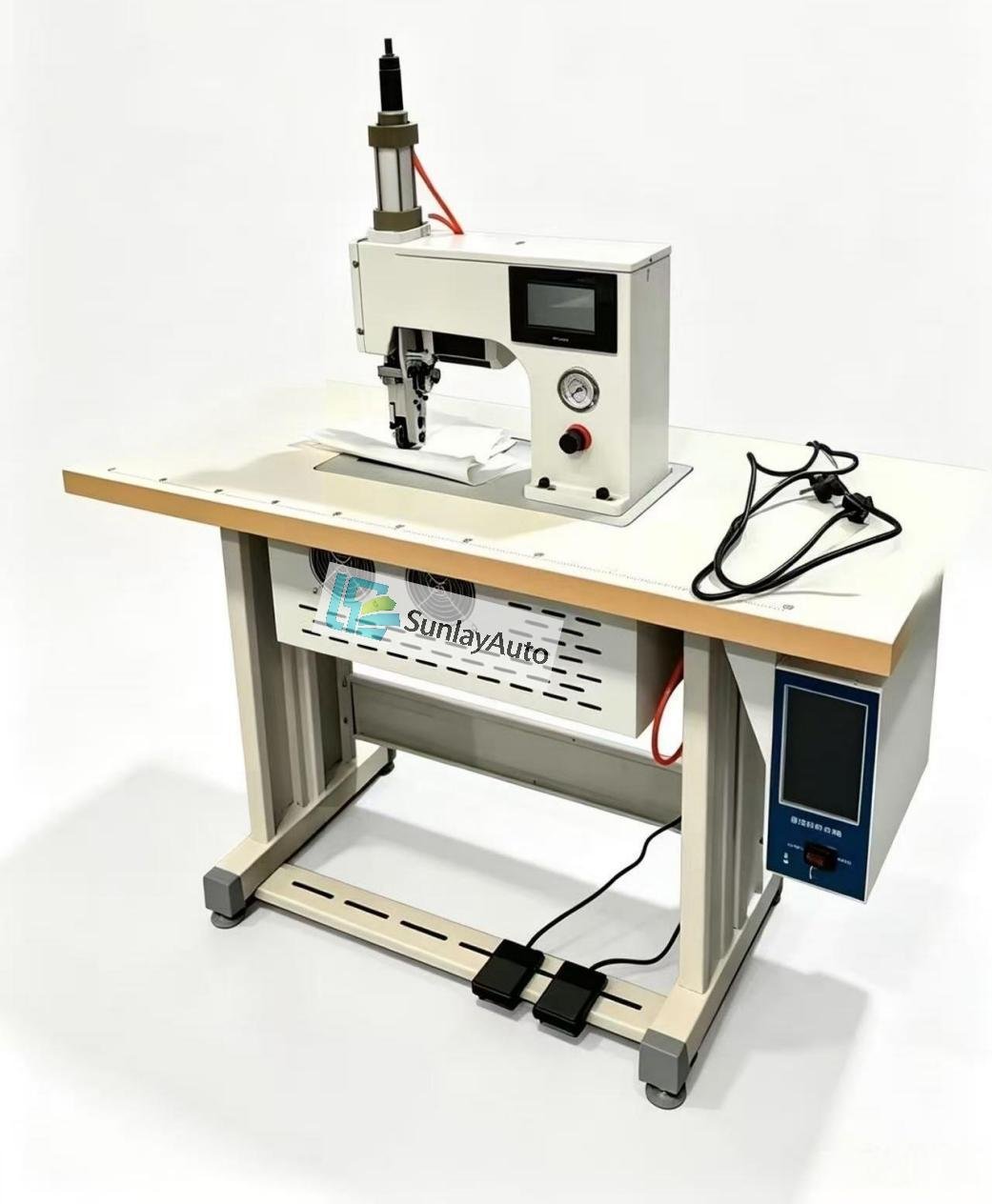

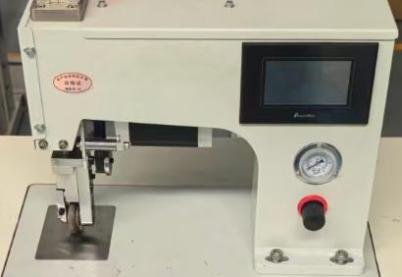

35 kHz Radial Reinforced Ultrasonic Lace Machine

The radial ultrasonic lace machine is designed for circular, curved and irregular edges that are difficult to process with a conventional straight-path ultrasonic sewing machine. Its rotary welding arrangement guides the welding head along the workpiece contour. The quoted model uses servo control for radial positioning and a dedicated curved-amplitude output system for more even ultrasonic energy distribution along changing curves.

Typical applications stated in the source include underwear shoulder straps, round placemats, curved medical products and sports protective gear.

Radial Model Listed Configuration

• ZHENDA cooling fans: 2 sets

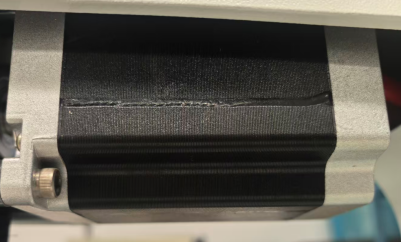

• XINJE servo motor: 1 set
• In-house ultrasonic electrical cabinet: 1 unit

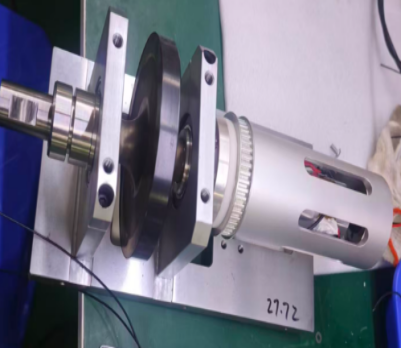

• In-house welding head and transducer: 1 set
• Enoch cylinder: 1 set

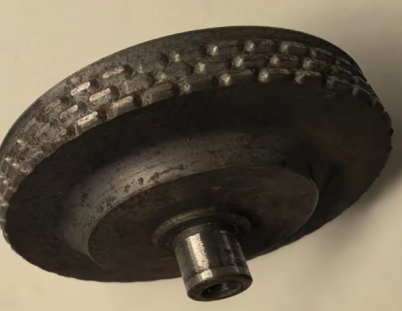

• Customized pattern roller: 1 unit
• XINJE display: 1 set

Custom Tooling and Model Selection

Pattern rollers can be customized to the required lace, perforation, cutting or embossing profile. Select manual or pneumatic mold lifting, single- or dual-motor drive, raised-head construction, or the radial reinforced model according to the material, thickness, product contour and target process. Confirm the required configuration before order placement.

Commercial Terms and After-Sales Service

• Payment: 40% deposit; balance after acceptance and before delivery
• Price term: EXW, excluding tax and freight
• Delivery: within 30 working days after receipt of the deposit
• Packing: stretch-film wrapping
• Warranty: one year for quality issues attributable to the supplied machinery; improper-operation damage is excluded
• Lifetime after-sales service is available

Related Ultrasonic Fabric Processing Machines

For compatible nonwoven and film converting processes, review the Automatic Ultrasonic Fabric Laminating and Embossing Machine, Automatic Ultrasonic Nonwoven Fabric Slitting and Cutting Machine, Automatic Ultrasonic Quilting and Laminating Machine, and Single and Double Head Ultrasonic Spot Welding Machines.
