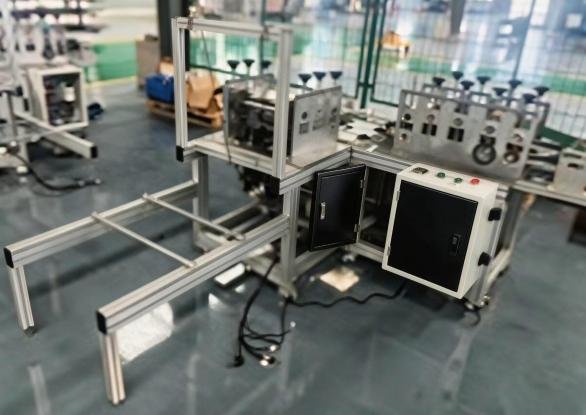

Nonwoven Shoe Cover Making and Packing Machine Production Line

This automatic nonwoven shoe cover making machine is designed for efficient production of elastic disposable shoe covers for medical, cleanroom and industrial hygiene applications. The line combines automatic material feeding, guiding, ultrasonic welding, forming, cutting and product counting with a matching packing machine, giving manufacturers a practical production-to-packaging solution.

Key Advantages

• Automatic operation from material feeding to finished shoe cover counting
• Production speed of 100-160 pieces per minute
• Adjustable 20 kHz ultrasonic welding for soft and comfortable seams
• Variable-frequency speed control
• Automatic constant-temperature control
• PLC touchscreen for clear operating data
• Aluminum machine structure with chrome-plated surface for easy cleaning
• One-operator production workflow
• Custom shoe cover sizes available
• Matching packing machine included in the production solution

Production Process

Automatic feeding – material guiding – ultrasonic welding – forming and cutting – finished shoe cover output – packing

Nonwoven Shoe Cover Making Machine Specifications

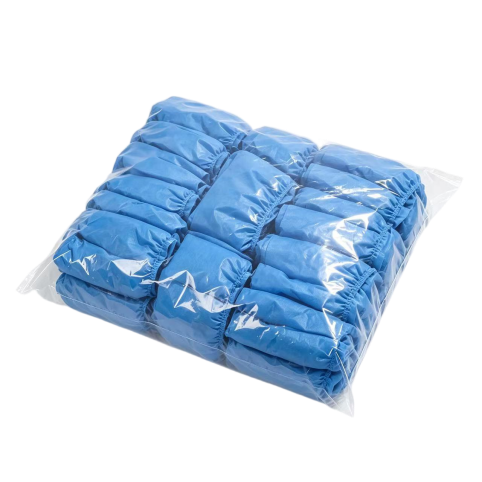

Matching Packing Machine

The production solution includes one matching packing machine for packaging finished nonwoven shoe covers after production. The quotation does not specify separate technical parameters for the packing machine; final packing requirements should therefore be confirmed according to the buyer’s finished-product and packaging format.

Main Machine Configuration

• Control panel: 1 set
• Material unwinding rack: 1 set, self-manufactured
• International channel-steel machine frame: 1 set, self-manufactured
• High-strength molds: 2 sets, self-manufactured
• Ultrasonic generator boxes: 3 units, self-manufactured
• Pressure rollers: 1 pair
• Plastic roller: 1 unit
• Switch: 1 unit, Xinje
• Transducers: 4 units
• Motor: 1 unit, Changzhou Zhufeng
• Inverter: 1 unit, Veichi
• PLC: Xinje
• Cylinders: 4 units, Yinuo
• Belts: 4 units

Customization and After-Sales Support

The standard shoe cover size is 40 x 15 cm, and other sizes can be customized according to the buyer’s requirements. The machine is manufactured according to the buyer’s technical requirements.

• Payment: 40% down payment; balance after acceptance and before delivery
• Price basis: EXW, excluding tax and freight
• Delivery: within 25 working days after receipt of down payment
• Packing: stretch-film packing
• Warranty: one year for machine quality issues, excluding damage caused by improper operation
• After-sales service: lifetime service

Packaging and Product Requirement Review

The automatic nonwoven shoe cover making and packing machine line should be evaluated against the buyer’s finished shoe-cover size, nonwoven material, elastic requirement and packaging format. The listed line combines the documented production functions with a matching packing machine; a finished-product sample or packing reference helps confirm the required configuration before order confirmation. This keeps the nonwoven shoe cover making and packing line selection aligned with the intended production and packing arrangement.

Typical Production Applications

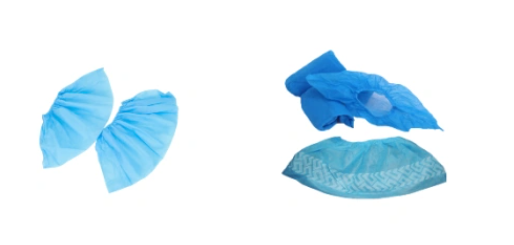

Disposable elastic shoe covers are used where footwear protection and clean-area management are required, including medical facilities, laboratories, food-processing areas and industrial workplaces. Buyers can confirm the final cover size and packing presentation for the nonwoven shoe cover making and packing line according to their target market and operating process. The documented standard size is 40 x 15 cm, while other sizes are subject to the agreed customization requirement.

For protective-product compliance planning, consult the FDA medical device guidance alongside the confirmed nonwoven shoe cover making and packing project specifications.

Related Disposable Product Production Lines

For other nonwoven disposable-product manufacturing equipment, see the Automatic PE Plastic Shoe Cover Making Machine, Automatic Nonwoven Boot Cover Making Machine, Automatic Nonwoven Doctor Cap Making Machine, and Automatic Nonwoven Strip Cap Making and Packing Line.
